Why the floor matters more than buyers expect
A tent floor sits on wet grass, gravel, roots and grit, and carries the weight of people kneeling, sleeping and moving gear. Water reaches it from below as ground moisture and pooled rain, and from the sides as run-off from the fly. Pressure from a knee or an elbow pushes water through a fabric that would resist the same water sitting on top. That is why floors are usually specified with a heavier fabric or coating than the fly, and why construction matters as much as material.
Many returns blamed on a leaking tent turn out to be a floor problem: water entering at a corner seam, wicking through a groundsheet that sticks out beyond the fly, or pooling under a tent pitched in a dip. The why tents leak note covers the wider picture.

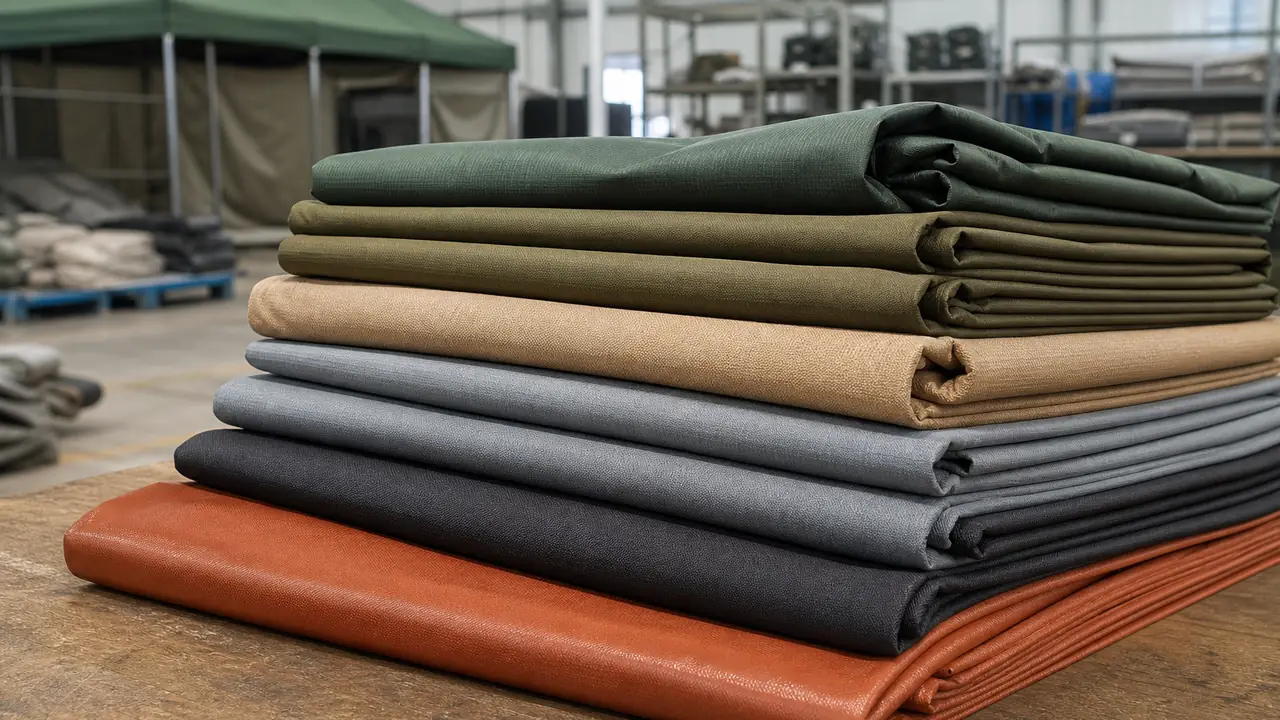

The main floor materials
| Material | Typical lines | Strengths | Watch points |
|---|---|---|---|
| PE sheet (woven polyethylene) | Entry dome tents, cabin tents | Low cost, water resistant, easy to clean | Bulky, stiff in cold, can crack at folds, seams often sewn |
| Welded PE | Instant tents | No stitched seams in the tub | Weld quality and corner joins need checking |
| 150D-210D polyester oxford, PU coated | Mid and better dome and family tents | Abrasion resistant, packs better than PE, takes seam tape | Coating quality and taping decide water resistance |
| Coated nylon ripstop | Backpacking tents | Light and packable | Thin; a footprint is usually recommended |
| PVC tub floor | Bell and glamping tents (540 gsm on the reference) | Heavy duty, wipe clean, welded | Heavy; check welds and zip-in joins |
The dome reference model from public listings uses a PE floor; the six-person instant reference uses a welded PE floor; the five-metre bell tent reference uses a 540 gsm PVC tub floor. Better family tents move to 150D-210D oxford. See dome camping tents, pop-up instant tents and bell and glamping tents.
What a bathtub floor is
A bathtub floor, or tub floor, runs the floor material up the side walls by several centimetres before it meets the wall fabric, with the corners folded or welded. The seam that joins floor to wall then sits above ground level instead of on it. Water pooling around the tent has to rise above that seam before it can enter. Almost every decent tent uses some form of tub floor; what varies is the height of the tub, how the corners are formed and how the seams are sealed.
- Tub height: higher tubs keep more water out but reduce floor space at the wall and can trap condensation. The height should be stated on the spec sheet.
- Corners: folded corners avoid a seam at the lowest point; cut and sewn corners need taping. Welded corners are standard on PE and PVC floors.
- Seams: stitched seams in a coated oxford floor should be taped; see tent seam taping.
Water resistance figures for floors
Floor fabrics carry a hydrostatic head figure measured to ISO 811, and it is normally higher than the fly figure because of the pressure from body weight. Like any hydrostatic head number it describes the fabric, not the tent. A high figure does not help if water enters through an untaped corner, a stake loop stitched through the tub or a door sill at ground level. Listings should say waterproof-rated floor fabric with the figure per test report, and inspection should include a water check on the floor seams of sampled tents.
Footprints and groundsheets
A footprint is a separate sheet laid under the floor to protect it from abrasion and add a layer against ground moisture. On backpacking tents with thin nylon floors it is close to essential and is often sold as an accessory; on family tents it extends floor life. The footprint should be slightly smaller than the floor. If it sticks out beyond the fly, rain runs off the fly onto the footprint and is channelled under the tent, which users then report as a leak. The manual should show this with a simple drawing.
Floors in cold and on hard ground
PE becomes stiff and can crack in cold weather, which matters for shoulder-season and winter ranges. Oxford and coated nylon stay more flexible. Hub-style ice fishing shelters are often floorless or use a removable floor so anglers can drill through the ice; their anchoring comes from ice anchors rather than the floor. On gravel or rocky pitches every floor wears faster, which is one more reason to offer a footprint.
Floor and weight
The floor is a large share of a tent's fabric area, so its material moves the weight and pack size noticeably. A PVC tub floor is part of why the bell tent reference model weighs about 35 kg; a PE floor adds bulk to an entry dome; a nylon floor is part of how a backpacking tent reaches about 1.7-1.8 kg. When a brand wants a lighter family tent, moving from PE to oxford is often a better step than thinning the fly.
Writing the floor into the spec sheet
- Material and grade: PE, welded PE, 150D-210D oxford with PU coating, coated nylon ripstop or PVC with gsm.
- Hydrostatic head per ISO 811 report on the floor fabric lot.
- Tub height and corner construction.
- Seam method: taped, welded or none across the field of the floor.
- Stake loop and pole foot attachment, kept above the tub line where possible.
- Footprint included or offered, and its size relative to the floor.
Cost and ordering
Moving from PE to oxford, or adding a footprint, raises material cost but often reduces returns and lifts reviews on family tents. Existing styles with a changed floor material are usually quoted as a variation; new floor constructions are assessed per order. Typical starting quantities are 300-500 tents per style, confirmed in writing; see MOQ and lead time, or send your preferred floor through the quote form.
